Gearheads vs. Programmable Index Drives for Horizontal Rotation Applications

The Evolution of Rotary Motion in Industrial Automation

In today’s industrial automation landscape, the demand for infinitely programmable rotation is rapidly growing. Manufacturers no longer want fixed-angle indexing; they want flexible, servo-controlled motion that allows variable speeds, dwell times, and highly accurate stop positions.

A common approach is to pair a servo motor or AC motor with encoder to a gearbox or gearhead. This combination seems effective—until the application involves horizontal rotationhigh inertial loads, and tight accuracy requirements.
That’s where traditional geared systems begin to show their limitations.

Why Gear-Based Systems Struggle in High-Inertia Applications

1. Torque Alone Doesn’t Tell the Full Story

When designing a horizontal rotary system, many engineers size the drive around torque output. Yet inertia—not torque—often determines whether the system will perform reliably.
On paper, the motor may produce enough torque to rotate the load. In practice, the result is often a system that rotates, but can’t position accurately.

High load-to-motor inertia ratios cause longer settling times, overshoot, and poor responsiveness. As the Association for Advancing Automation notes, “Large inertia mismatches decrease operating bandwidth and make the motor work harder than necessary” (Automate.org).


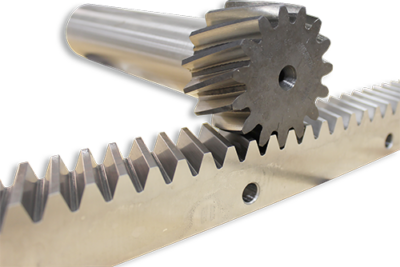

2. Backlash and Compliance Limit Accuracy

Gearheads introduce backlash—the small mechanical play between gear teeth—and compliance, or drivetrain flexibility. These factors magnify at high inertial loads, resulting in reduced repeatability and positional error.

Motion Index Drives highlights this issue:

“The geared device inherently has some backlash, but even more so, the inertia mismatch between the motor and the application is very high.”
(Motion Index Drives Whitepaper)

When combined, these mechanical limits create systems that perform adequately at low speeds, but struggle to maintain stability or precision under load.

3. The Problem of Inertia Mismatch

The inertia mismatch between the drive and load is one of the most overlooked causes of poor rotary performance.
A general design rule is to maintain a load-to-motor inertia ratio below 10:1. Ratios higher than that make control unstable, forcing engineers to use oversized motors or complex tuning.

When inertia isn’t managed, you get:

  • Slow acceleration and deceleration

  • Extended settling times

  • Overshoot or oscillation

  • Inconsistent positional accuracy

As Rexel USA explains, “The gear ratio has an inverse square effect on reflected load inertia; improper ratios lead to energy loss and poor servo performance” (Rexel USA Blog).

How Programmable Cam-Driven Index Drives Solve These Issues

1. Rigid Coupling and Zero Backlash

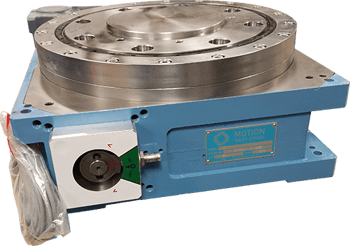

cam-driven indexer mechanically couples the cam and output dial in a rigid, backlash-free manner. This direct drive path eliminates compliance, ensuring repeatable accuracy and smooth motion—even under high load.

“With a cam indexer from Motion Index Drives, there is NO backlash or inaccuracy between the rotating dial and cam. This is a rigid connection.”
(Motion Index Drives Whitepaper)

2. Sized by Inertia, Not Just Torque

Unlike typical geared systems, Motion Index Drives’ cam indexers are sized by inertial load, not only torque output.
This ensures the internal cam followers, bearings, and drive components can handle high inertial forces throughout the product’s lifetime—maintaining accuracy even in high-duty cycles.

By matching the indexer to the actual dynamics of the load, engineers eliminate instability before it starts.

3. Built-In Reduction Enhances Efficiency and Control

Each cam-driven indexer contains an internal reduction—often between 10:1 and 40:1—and can be paired with an additional gearbox (typically 15:1 to 50:1).
This combined reduction ratio:

  • Multiplies torque, allowing smaller, more efficient motors.

  • Reduces reflected inertia, improving control bandwidth exponentially.

The result? Stable motion, minimal overshoot, and precise repeatability. For horizontal axes, a 10:1 inertia mismatch is the recommended maximum—and with cam indexers, that’s achievable without over-sizing your motor.

Why Motion Index Drives Leads in Programmable Indexing

Motion Index Drives designs programmable cam indexers specifically for high-inertia and precision automation environments. Every model—whether used in a rotary welding positionerprecision link conveyor, or automated assembly table—is engineered for:

  • Zero backlash mechanical rigidity

  • Long-life precision bearings and cam followers

  • Low maintenance requirements

  • Full inertia-based sizing and simulation

This engineering approach ensures your equipment maintains accuracy, uptime, and repeatability for years of continuous operation.

Conclusion

When precision and inertia management matter, torque alone isn’t enough.
By replacing traditional geared servo systems with programmable cam-driven indexers, manufacturers gain:

  • Higher positional accuracy

  • Reduced motor size and cost

  • Improved dynamic control

  • Longer system lifespan

For horizontal rotary automation, Motion Index Drives’ cam indexers provide the mechanical stability, control precision, and long-term reliability that geared systems simply can’t match.
