Tool Tray Transfer System

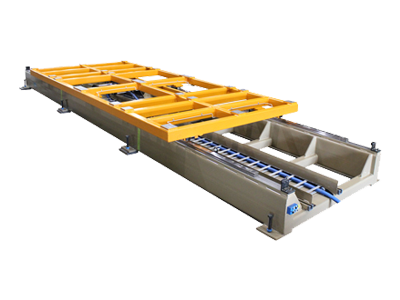

At Motion Index Drives, we specialize in custom engineered indexing solutions. We have begun manufacturing a Programmable Indexing Linear Position Shuttle or Tool Tray Transfer System to meet customer specifications more efficiently. We utilize the highest precision guide rails, rack and pinion system. We utilize a closed loop motor control system with high index speed capability and versatility to meet any automation challenge.The compact, low profile Tool Tray Transfer System is used to precisely shift tooling or parts linearly at a customer specified distances with a standard accuracy – DIN 6 on gear rack +/-0.0003”/ft . It has an infinitely programmable position through the use of an AC motor with encoder or servo motor control. It eliminates the use of typical shot pins required due to the gearing position and low backlash gear reducer. Our robust structural tubular steel construction is designed for easy maintenance and greater accessibility and over-sized linear bearings guide ways enable the transfer system to handle greater mass. The transfer system also has an integrated cable carrier option that reduces floor space consumption.

The transfer system is completely designed to accommodate customer specifications including

  • Length
  • Accuracy/high
  • Carrige size and design
  • Cable Tray locations
  • Cable Management System
  • Motor Brands
  • Color

To find out more information about our Tool Tray Transfer System such as capabilities and custom features, please follow our link for an inquiry.
