Max permissable output torque (Nm)
Indexing Accuracy in Angular Seconds (")
Max radial force static (kN)
Through hole dimension (mm)
Max radial force dynamic (kN)
Max vertical force dynamic (kN)
Max tilting moment (kNm)
Axial Runout on Output Flange Ø [mm]
Runout on the output flange Ø [mm]

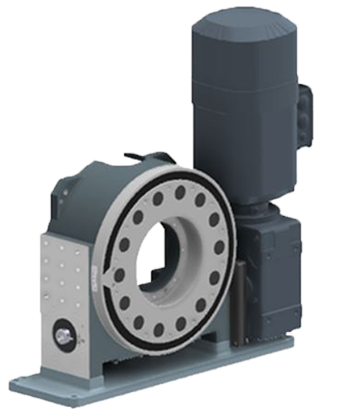

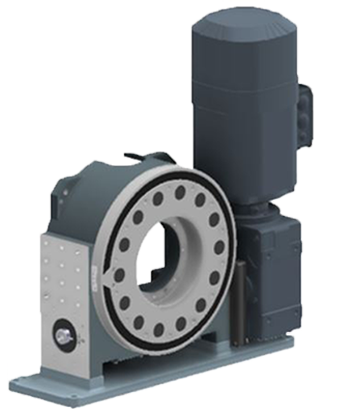

Max permissable output torque (Nm) 2940
Indexing Accuracy in Angular Seconds (") ±10
Max radial force static (kN) 100
Through hole dimension (mm) 165
Max radial force dynamic (kN) 29
Max vertical force dynamic (kN) 20
Max tilting moment (kNm) 19
Axial Runout on Output Flange Ø [mm] 0.02
Runout on the output flange Ø [mm] 0.02

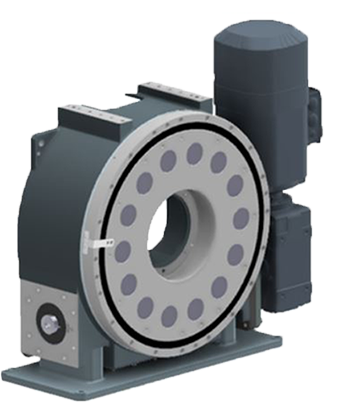

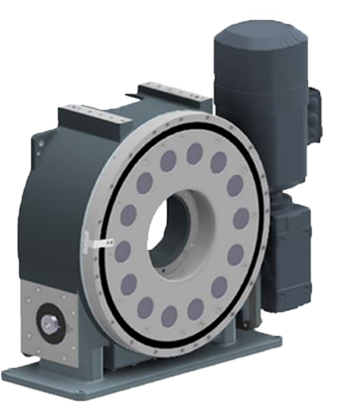

Max permissable output torque (Nm) 5460
Indexing Accuracy in Angular Seconds (") ±10
Max radial force static (kN) 350
Through hole dimension (mm) 190
Max radial force dynamic (kN) 64
Max vertical force dynamic (kN) 75
Max tilting moment (kNm) 100
Axial Runout on Output Flange Ø [mm] 0.02
Runout on the output flange Ø [mm] 0.02

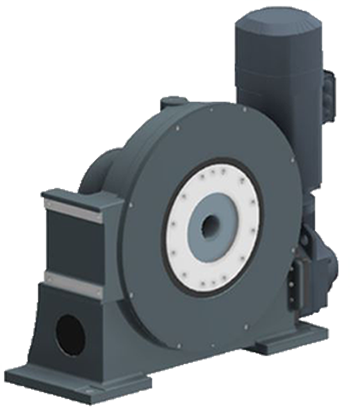

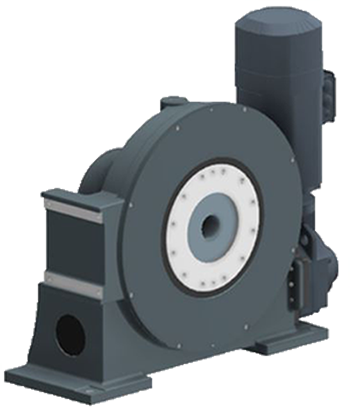

Max permissable output torque (Nm) 11160
Indexing Accuracy in Angular Seconds (") ±10
Max radial force static (kN) 543
Through hole dimension (mm) 80
Max radial force dynamic (kN) 85
Max vertical force dynamic (kN) 80
Max tilting moment (kNm) 108
Axial Runout on Output Flange Ø [mm] 0.02
Runout on the output flange Ø [mm] 0.02

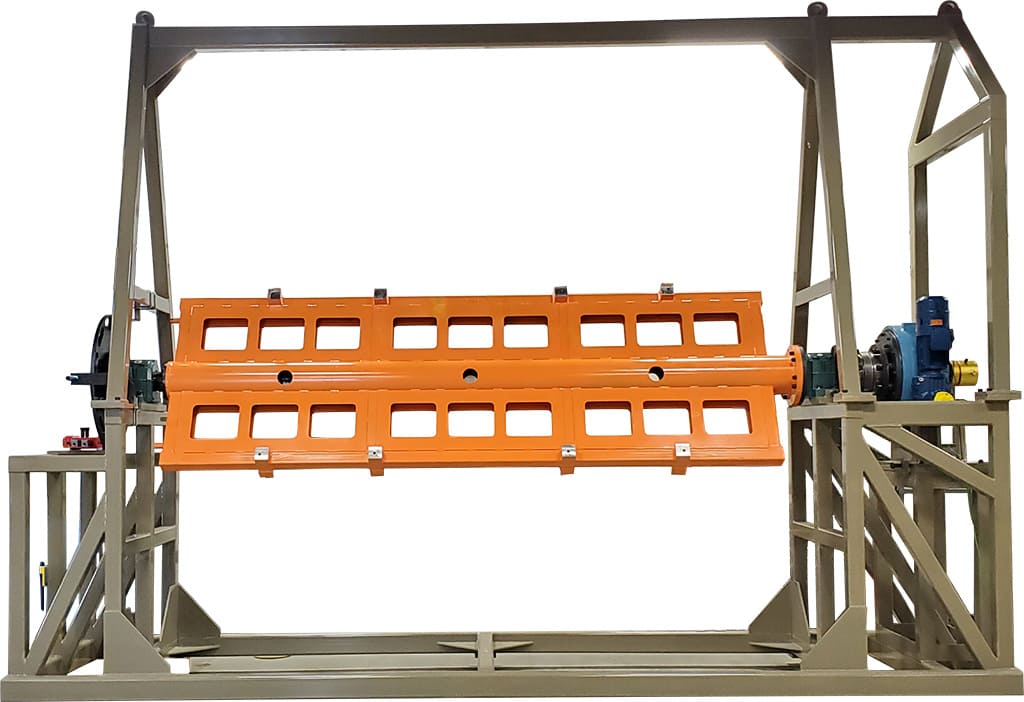

The custom Trunnion Weld Positioner with Frame is designed to support and position an automotive fixture in major automotive facilities. It provides precise positioning with its zero backlash TMF2000 Rotary Indexer with AC motor control and an absolute encoder.The slip ring and air union facilitate communication and power delivery, as well as air supply to the fixtures, enhancing the overall operational efficiency. The mastering pin and split bearing block contribute to easy system zeroing and assembly, making the positioner a versatile and efficient solution for various indexing applications.

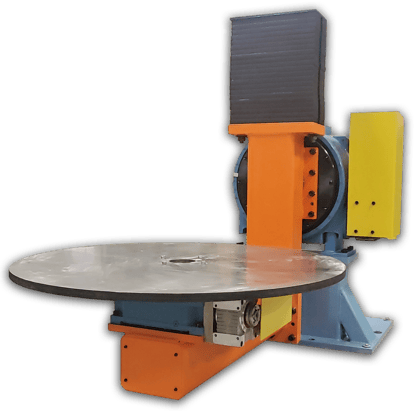

A leading automotive parts manufacturer specializing in precision welded components for car chassis and frame assemblies produces large batches of high-strength welded parts that require a high degree of accuracy and consistency. The 2-Axis Sky Hook Weld Positioner was a successful solution for this automotive supplier, enabling them to automate their welding operations, increase production speed, and achieve consistently high-quality welds.

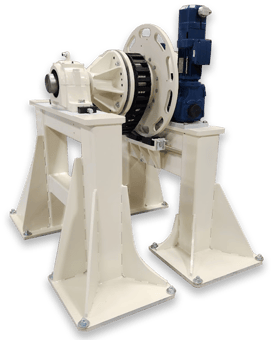

This Single Axis Trunnion System is designed for high-precision applications, offering advanced safety features, minimal backlash, and a robust structure for demanding environments. The combination of servo motor control, gearmotor systems, safety lock-out mechanisms, and cable management ensures that this system meets the technical and operational needs of the customer while maintaining safety and performance.
Facing a unique rotary table challenge? Motion Index Drives uses our inquiry form to develop custom solutions tailored to your specific application.
