TSR Rotary Indexing Ring Table

TSR Rotary Indexing Ring Table

Watch Demo Video or Custom Quote

Max. # of Cycles/Min (max. input speed) (rpm)

Precision in Radians (mm)* At pitch diameter of cam followers

Precision in Angular Seconds (“)*

Axial Force on Output Flange (kN)

Radial Force on Output Flange (kN)

Tilting Moment on Output Flange (kNm)

TSR-1200-1

TSR600

Max. # of Cycles/Min (max. input speed) (rpm) 220

Precision in Radians (mm)* At pitch diameter of cam followers ±0.015

Precision in Angular Seconds (“)* ±21

Axial Force on Output Flange (kN) 374

Radial Force on Output Flange (kN) 176

Tilting Moment on Output Flange (kNm) 57

Add to quote

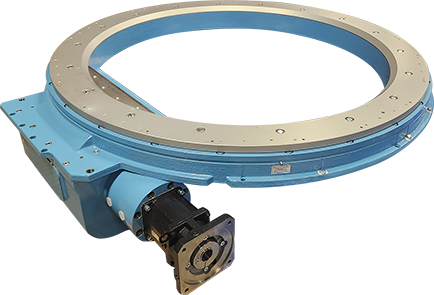

TSR-1200-2

TSR1000

Max. # of Cycles/Min (max. input speed) (rpm) 180

Precision in Radians (mm)* At pitch diameter of cam followers ±0.02

Precision in Angular Seconds (“)* ±8.25

Axial Force on Output Flange (kN) 1455

Radial Force on Output Flange (kN) 685

Tilting Moment on Output Flange (kNm) 394

Add to quote
TSR-1200-3

TSR1400

Max. # of Cycles/Min (max. input speed) (rpm) 150

Precision in Radians (mm)* At pitch diameter of cam followers ±0.025

Precision in Angular Seconds (“)* ±7.37

Axial Force on Output Flange (kN) 852

Radial Force on Output Flange (kN) 401

Tilting Moment on Output Flange (kNm) 229

Add to quote
Description
Resources
Advantages For Design Engineers And Special Machine Builders
Technical Benefits
Options Available
Related Products

The Motion Index Drives TSR Series Ring Rotary Indexing Table encompasses a range of sizes that offer solutions for many applications. Four different models are available in our standard line: TSR600, TSR1000, TSR1400, and TSR1900. Our rotary indexing ring tables are ideal for applications that require extremely large, open-center accessibility for tooling, robot, and other fixed-mounted devices. Some applications will use this space to move a product from the ring to a passing tooling or conveyor below.

Rotary ring index drives are not for the average indexing application. In most applications, such a large open center is not required. In these cases, our RT, RTX, TT, or TMF series index drives would be a better solution.

Our Flexible Rotary Indexing Ring Table is manufactured with a constant lead cam. This means the angle of rotation can be programmed to be whatever the application requires and can change by simply altering the program of the motor. The ring indexing drives are driven by a gear reducer and then controlled by an AC motor with an encoder OR a servo motor. The positioning is solely based on the encoder position feedback, providing 100% position control through the program of the motor. Fixed TSR series index drives are available.

Advantages For Design Engineers And Special Machine Builders

  • Easy synchronization of other mechanical devices

  • Open center for mounting equipment

  • Tooling designs can be up to 20′ (6 meters) in diameter

  • Oscillation indexing operation capabilities are standard

Technical Benefits

  • Extremely reliable with long service lives
  • Hardened cams and cam followers
  • Internal components immersed in oil bath
  • Accuracies of up to ±0.023 mm (0.0009″)
  • 4-Point contact bearing increases load capacities
  • 100% programmable infinite positioning indexing station capability through constant lead cam
  • Reinforced top bearings for consistent strength
  • Unique profile to produce indexed movement

Options Available

  • Custom riser base weldments
  • Custom top dials
  • User-controlled stations and timing with the MOTION Flex line
  • Clean room ready with MEDEX Index Drives
  • Extremely high accuracy applications with NANO Indexer Technology
  • More Options
