TG Series Right Angle Index Drive

TG Series Right Angle Index Drive

Custom Quote

Max. # of Cycles/min (max. input speed) (rpm)

Precision in Radians (mm)* At pitch diameter of cam followers

Precision in Angular Seconds (“)*

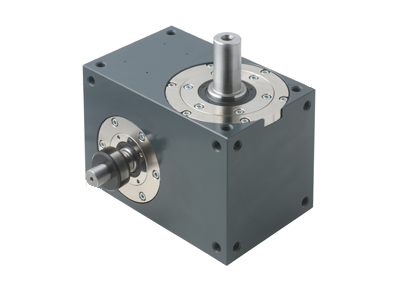

mid-right-angle-index-drives-products-1

TG55

Max. # of Cycles/min (max. input speed) (rpm) 450

Precision in Radians (mm)* At pitch diameter of cam followers ±0.012 / ø50

Precision in Angular Seconds (“)* ±99

Add to quote
mid-right-angle-index-drives-products-2

TG80

Max. # of Cycles/min (max. input speed) (rpm) 400

Precision in Radians (mm)* At pitch diameter of cam followers ±0.012 / ø80

Precision in Angular Seconds (“)* ±61.88

Add to quote
mid-right-angle-index-drives-products-3

TG82

Max. # of Cycles/min (max. input speed) (rpm) 400

Precision in Radians (mm)* At pitch diameter of cam followers ±0.012 / ø80

Precision in Angular Seconds (“)* ±61.88

Add to quote

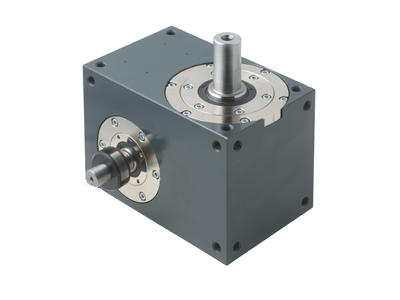

mid-right-angle-index-drives-products-4

TG100

Max. # of Cycles/min (max. input speed) (rpm) 350

Precision in Radians (mm)* At pitch diameter of cam followers ±0.012 / ø100

Precision in Angular Seconds (“)* ±49.5

Add to quote
mid-right-angle-index-drives-products-5

TG108

Max. # of Cycles/min (max. input speed) (rpm) 350

Precision in Radians (mm)* At pitch diameter of cam followers ±0.012 / ø105

Precision in Angular Seconds (“)* ±47.15

Add to quote
mid-right-angle-index-drives-products-6

TG140

Max. # of Cycles/min (max. input speed) (rpm) 350

Precision in Radians (mm)* At pitch diameter of cam followers ±0.012 / ø105

Precision in Angular Seconds (“)* ±41.25

Add to quote
Description
Advantages For Design Engineers And Special Machine Builders
Technical Benefits For Users
Options Available
Related Products

Right Angle Index Drives are ideal for high speed, high accuracy applications. These rotary indexers convert a uniform input motion into an intermittent right angle output motion in clockwise, counter-clockwise or oscillating movements. The intermittent output motion is transmitted through our induction-hardened, precision-machined globoidal cam. The TG Series right angle rotary indexer is driven by flame hardened cams and have a robust design for high-stress environments. It is offered in a fixed station configuration or as a 100% flexible turntable with a servo motor or standard AC brake motor with encoder.

The Motion Index Drives Right Angle Index Drive TG Series is ideal for very fast, continuous applications. It comes standard with robust welded steel housing, making the TG Series ideal for intense environments and use. Internal components are also high-quality hardened steel, ensuring the TG Series right angle rotary indexer will be one of the longest-lasting and reliable components in your automation process.

Advantages For Design Engineers And Special Machine Builders

  • Oscillating capabilities are standard

  • Easy synchronization of other mechanical devices

  • Housing machined on all sides for use in any mounting position

  • Great for high speed applications

  • Clockwise, counter clockwise or oscillating movement

  • Cam profiles allow for smooth acceleration and deceleration

  • Accuracies of up to +/- 0.023mm (0.0009″)

  • Housing machined on all sides. Suitable for use in any mounting position required

  • Mounting holes identical on top and bottom

  • Smooth index angles and extended dwell enable continuous use

  • ­Simultaneously rotating input shaft extension.

  • Optional synchronization of other mechanical modules

Technical Benefits For Users

  • Multiple designs available
  • Backlash free
  • Capable of over 1,000 cycles per minute
  • Flame-hardened cams and cam followers for higher load capabilities
  • Internal components immersed in oil bath
  • Can have dwell angle larger then index angle
  • Extremely reliable with long service lives
  • High efficiency mechanical components require less input power
  • Low profile housing for seamless integration
  • Completely maintenance free

Options Available

  • Hollow output shafts
  • Choice of drive
  • Available as output shaft or flange
  • Clean room ready with MEDEX Index Drives
  • Reinforced output flange bearing for higher tilting moment
  • Optional friction clutch on drive
  • Dwell and index angle can be tailored to requirements
  • All sizes also available as programmable flex indexers
