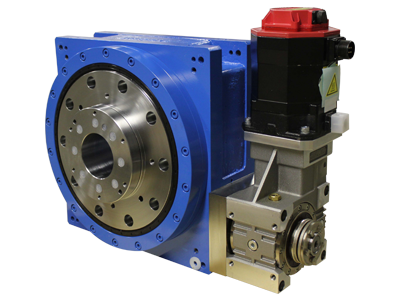

RTF Servo Trunnion

Max permissable output torque (Nm)

Indexing Accuracy in Angular Seconds w/encoder (")

Max permissable static Torque (Nm)

Through hole dimension (mm)

Axial Force on Output Flange (kN)

Radial Force on Output Flange (kN)

Tilting moment Mka (kNm)

Axial Runout on Output Flange Ø [mm]

Runout on the output flange Ø [mm]

Max permissable output torque (Nm) 200

Indexing Accuracy in Angular Seconds w/encoder (") ±18

Max permissable static Torque (Nm) 322

Through hole dimension (mm) 22

Axial Force on Output Flange (kN) 20

Radial Force on Output Flange (kN) 17.5

Tilting moment Mka (kNm) 1.3

Axial Runout on Output Flange Ø [mm] 0.01

Runout on the output flange Ø [mm] 0.01

Add to quote

Max permissable output torque (Nm) 300

Indexing Accuracy in Angular Seconds w/encoder (") ±16

Max permissable static Torque (Nm) 508

Through hole dimension (mm) 40

Axial Force on Output Flange (kN) 18.4

Radial Force on Output Flange (kN) 23

Tilting moment Mka (kNm) 1

Axial Runout on Output Flange Ø [mm] 0.01

Runout on the output flange Ø [mm] 0.01

Add to quote

Max permissable output torque (Nm) 450

Indexing Accuracy in Angular Seconds w/encoder (") ±14

Max permissable static Torque (Nm) 833

Through hole dimension (mm) 50

Axial Force on Output Flange (kN) 22.5

Radial Force on Output Flange (kN) 20

Tilting moment Mka (kNm) 2.3

Axial Runout on Output Flange Ø [mm] 0.01

Runout on the output flange Ø [mm] 0.01

Add to quote

Max permissable output torque (Nm) 650

Indexing Accuracy in Angular Seconds w/encoder (") ±12

Max permissable static Torque (Nm) 1063

Through hole dimension (mm) 60

Axial Force on Output Flange (kN) 25

Radial Force on Output Flange (kN) 20

Tilting moment Mka (kNm) 2.9

Axial Runout on Output Flange Ø [mm] 0.01

Runout on the output flange Ø [mm] 0.01

Add to quote

Max permissable output torque (Nm) 850

Indexing Accuracy in Angular Seconds w/encoder (") ±10

Max permissable static Torque (Nm) 1572

Through hole dimension (mm) 80

Axial Force on Output Flange (kN) 25

Radial Force on Output Flange (kN) 22

Tilting moment Mka (kNm) 3.5

Axial Runout on Output Flange Ø [mm] 0.01

Runout on the output flange Ø [mm] 0.01

Add to quote

Description

Advantages For Design Engineers And Special Machine Builders

Technical Benefits For Users

Options Available

Industry Examples

Related Products

The Motion Index Drives RTF flexible trunnion rotary index drives series encompass our small to medium range of sizes, ranging from our model RTF450 up to our RTF900. Our programmable cam indexing trunnions are offered in three levels of accuracy, ranging from 30 arc seconds down to 5 arc seconds. The RTF programmable cam indexing trunnions can are operated with; AC motors with encoders, servo motors or robot auxiliary axis motors. The number of positions or stops are infinite with our fully programmable cam indexing trunnions. There are always multiple cam followers that are engaged in the cam at all times, which provides a very strong rotary indexer for their relative size. Zero backlash operation is realized in the fully programmable RTF trunnion indexers by using cam and cam follower technology. There is zero backlash on the output flange during operation and while in-position.

Advantages For Design Engineers And Special Machine Builders

Large center through holes to run utilities to fixtures
Most servo motors brands can be mounted
Can accommodate most robot brands to create an auxiliary axis
Can be used in any mounting position
Oscillating index operation capabilities
Additional tap and dowel holes on all sides to add auxiliary equipment
Can be used in any mounting position
Station to station repeatability within single digit arc seconds

Technical Benefits For Users

Extremely reliable with long service lives
High efficiency mechanical components require less input power
Flame hardened cams and cam followers
Internal components immersed in oil bath
Accuracies of up to ±0.008 mm (0.0003″)
Zero backlash technology via barrel cam and cam follower mechanism

Options Available

Rotary slip rings and air unions
Safety locking plates for maintenance tasks
Head and tailstock set
Custom designed and manufactured risers and tooling backbones
Rotary grounding devices
Weld isolation kits
Linear adjustable bases to allow for different size fixtures
