Pick and Place Units

Pick and Place Units

Watch Demo Video or Custom Quote

Vertical Stroke up to

Rotation up to

Pendulum Angle up to

Horizontal stroke up to

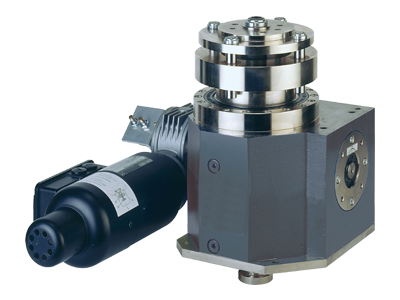

gh-100

GH

Vertical Stroke up to 55 mm

Rotation up to 80º

Pendulum Angle up to 90º

Horizontal stroke up to N/A

Add to quote

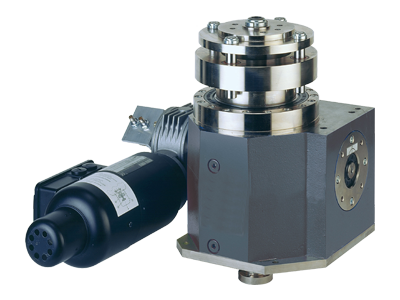

pick-and-place

RH

Vertical Stroke up to 30 mm

Rotation up to 90º

Pendulum Angle up to 60º

Horizontal stroke up to N/A

Add to quote

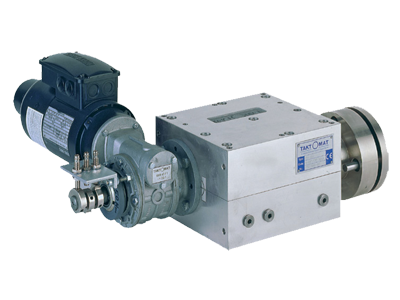

ph065-mechenical-pick-and-place-1

PH

Vertical Stroke up to 40 mm

Rotation up to 180°

Pendulum Angle up to 90°

Horizontal stroke up to N/A

Add to quote

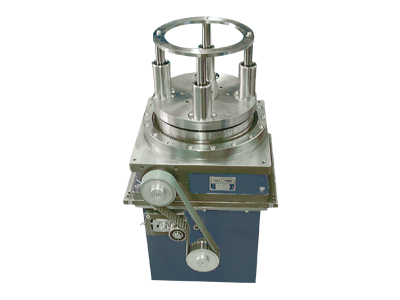

rt100-vp

RT + VT

Vertical Stroke up to 30 mm

Rotation up to 180°

Pendulum Angle up to 90°*

Horizontal stroke up to N/A

Add to quote

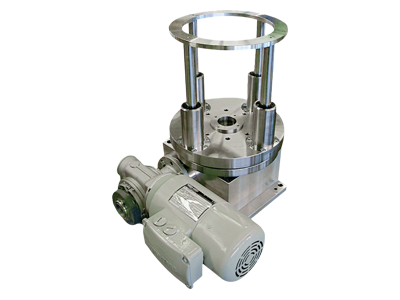

rt100-vp300

RT + VP

Vertical Stroke up to 300 mm

Rotation up to 180°

Pendulum Angle up to 90°*

Horizontal stroke up to N/A

Add to quote

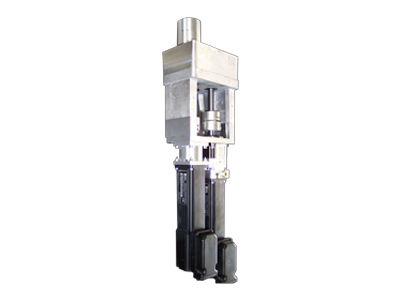

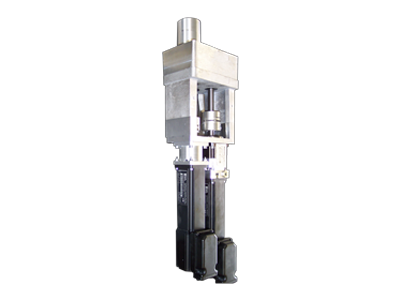

hdm30

HDM

Vertical Stroke up to 55 mm

Rotation up to free

Pendulum Angle up to N/A

Horizontal stroke up to N/A

Add to quote

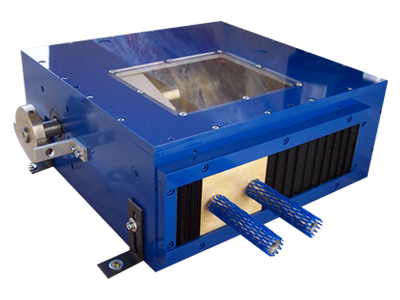

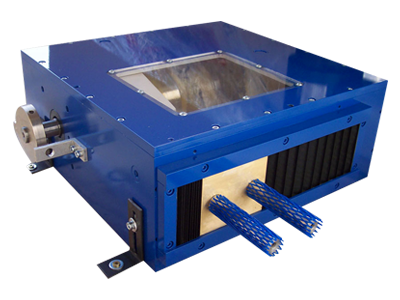

al80

AL

Vertical Stroke up to 35 mm

Rotation up to N/A

Pendulum Angle up to N/A

Horizontal stroke up to 80 mm

Add to quote
Description
Resources
Advantages For Design Engineers And Special Machine Builders
Technical Benefits For Users
Pick And Place Units Options Available
Related Products

Motion Index Drives Pick and Place Units are customized based on the automation application requirements. Pick and place handling solutions are ideal for high-speed and high-accuracy assembly jobs. A single gear motor controls the dial table and linear lift with synchronized cams, ensuring 100% repeatability and synchronization on every index cycle. With the combination options of cylinder, disk cam, disc groove, globoid, pneumatics and servo technology results in a large variety of pick and place machine solutions.

Advantages For Design Engineers And Special Machine Builders

  • Oscillating index operation capabilities

  • Easy synchronization of other mechanical devices

  • Compact units offering high torque ratings

  • Many different configurations to choose

Technical Benefits For Users

  • Long service lives
  • Flame-hardened cams and cam followers
  • Compact designs
  • Single drive operating both linear and rotary motion
  • Accuracies of up to .0009″ (0.023 mm)
  • Cam followers last the unit’s entire calculated life
  • Completely maintenance free
  • Less input power required than leading competitors
  • Completely wear-free when used with optional Allen Bradley PLC Controller

Pick And Place Units Options Available

  • Reinforced output flange
  • Custom lift and rotate strokes
  • Custom index and dwell angles
  • User-controlled stations and timing with the MOTION Flex line
  • Clean room ready with MEDEX Index Drives
  • Extremely high accuracy applications with NANO Indexer Technology
  • More Options

Configure Your Next Project

Facing a unique rotary table challenge? Motion Index Drives uses our inquiry form to develop custom solutions tailored to your specific application.
