TMF Series Programmable Rotary Index Table

TMF Series Programmable Rotary Index Table

Watch Demo Video or Custom Quote

Max. # of Cycles/min (max. input speed) (rpm)

Precision (mm)* At outside diameter of dial plate

Precision in Angular Seconds (“)*

Axial Force on Output Flange (kN)

Radial Force on Output Flange (kN)

Tilting Moment on Output Flange (kNm)

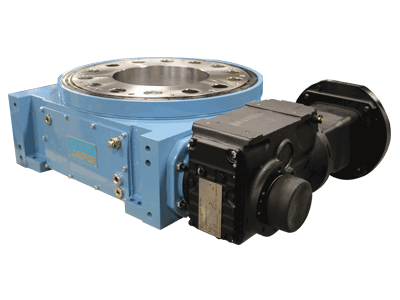

TMF1000-400x300-1

TMF1000

Max. # of Cycles/min (max. input speed) (rpm) (dependent on loading data)

Precision (mm)* At outside diameter of dial plate ±0.013/380

Precision in Angular Seconds (“)* ±14

Axial Force on Output Flange (kN) 213,000 N (213KN)

Radial Force on Output Flange (kN) 100,000 N(100KN)

Tilting Moment on Output Flange (kNm) 19,000NM (19knm)

Add to quote

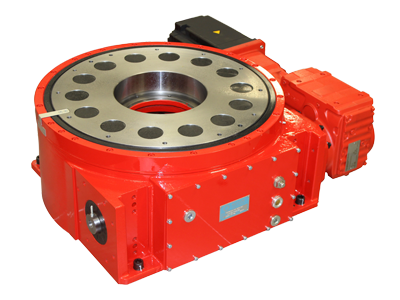

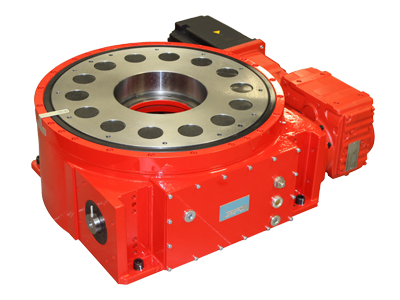

tmf-servo

TMF2000

Max. # of Cycles/min (max. input speed) (rpm) 350

Precision (mm)* At outside diameter of dial plate ±0.015 / ø560

Precision in Angular Seconds (“)* ±11

Axial Force on Output Flange (kN) 744

Radial Force on Output Flange (kN) 350

Tilting Moment on Output Flange (kNm) 100

Add to quote

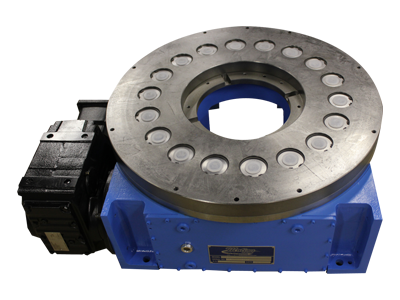

tmf-series

TMF3000

Max. # of Cycles/min (max. input speed) (rpm) 350

Precision (mm)* At outside diameter of dial plate ±0.018/800

Precision in Angular Seconds (“)* ±9

Axial Force on Output Flange (kN) 1154

Radial Force on Output Flange (kN) 543

Tilting Moment on Output Flange (kNm) 201

Add to quote

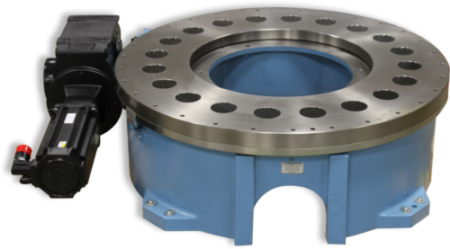

TMF4000-e1576696713494

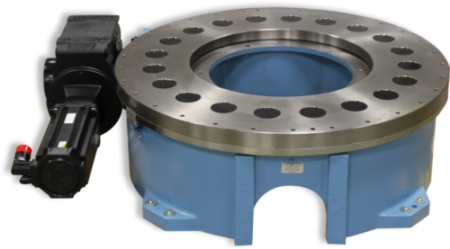

TMF4000

Max. # of Cycles/min (max. input speed) (rpm) 200rpm

Precision (mm)* At outside diameter of dial plate -/+0.022/1030

Precision in Angular Seconds (“)* +/- 8.5 Arc seconds

Axial Force on Output Flange (kN) 1468 N

Radial Force on Output Flange (kN) 690N

Tilting Moment on Output Flange (kNm) 324Nm

Add to quote
tmf-5000

TMF5000

Max. # of Cycles/min (max. input speed) (rpm) 300

Precision (mm)* At outside diameter of dial plate plate±0.025/1360

Precision in Angular Seconds (“)* ±8

Axial Force on Output Flange (kN) 1710

Radial Force on Output Flange (kN) 804

Tilting Moment on Output Flange (kNm) 519

Add to quote

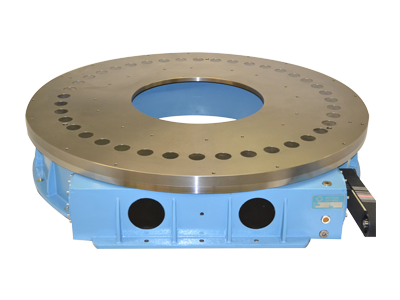

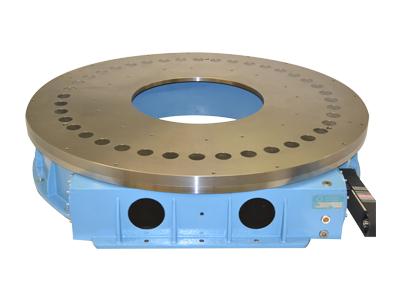

index-drives-cover

TMF8000

Max. # of Cycles/min (max. input speed) (rpm) 200

Precision (mm)* At outside diameter of dial plate ±0.04/2300

Precision in Angular Seconds (“)* ±6

Axial Force on Output Flange (kN) 4755

Radial Force on Output Flange (kN) 2237

Tilting Moment on Output Flange (kNm) 2416

Add to quote
Description
Resources
Technical Benefits For Users
Advantages For Design Engineers And Special Machine Builders
Programmable Rotary Table Options Available
Tmf350 Programable Rotary Indexer
Related Products

The TMF Series Programmable Rotary Index Table was engineered to satisfy the needs of the industrial manufacturing environment: fast, strong, reliable, high quality and cost effective. The TMF Series servo rotary index drive features a cast housing that is compact and has all the characteristics a manufacturer looks for: large center thru-hole for running utilities and mounting equipment. Our flexible rotary index tables are very low profile to eliminate the need for large A-frame type tooling or operator riser platforms, and a large rotating diameter for increased mounting surface.

The TMF series are our large programmable rotary index tables and are ideal for applications starting at 80 inches up to over 60 feet in diameter. The TMF Series programmable rotary table was designed to be a completely flexible rotary index table, allowing for multiple over-sized cam followers to be engaged with the barrel cam at all times. The servo rotary index drives is driven directly via a gear motor that can utilize either an AC motor with encoder, servo or auxiliary axis robot motor. All these options provide very high accuracy (less than 10 arc seconds) and allow for the flexible rotary index table to be driven via a dedicated servo drive or robot amplifier. Loading capabilities are multiplied significantly in this line of indexers through the design of the barrel cam and cam followers. This unique design allows for unprecedented inertial load capability.

Technical Benefits For Users

  • Extremely reliable with long service lives

  • High efficiency mechanical components require less input power

  • Flame hardened cams and cam followers

  • Internal components immersed in oil bath

  • Low profile housing for seamless integration

  • Top access to cam followers

  • Redesigned housing for larger center thru-hole

  • Significantly increased strength as a result of integration of more cam followers

  • Inspection of internal components can be done with tooling mounted on top

Advantages For Design Engineers And Special Machine Builders

  • Can be equipped with most major servo or robot brands
  • Low profile to eliminate the need for A-frame type tooling or operator riser platforms
  • Large rotating diameter for increased mounting surface
  • Optional synchronization of other mechanical module
  • Accuracies up to 4 arc seconds

Programmable Rotary Table Options Available

  • Machine bases
  • Robot pedestals integrated into center ring
  • Custom paint and coating
  • Custom dial plates or frames
  • More Options

Tmf350 Programable Rotary Indexer

Motion Index Drives is expanding its TMF series of fully programmable rotary index tables to include smaller models, replacing the current RT series in their lineup. One key benefit is that the smaller TMF series models engage more cam followers in the cam at once, providing more efficient movement of the output dial and better handling of inertial loads.

This ultra-compact, freely programmable rotary index drive stands out for its ability to deliver the torque and inertial load capacity typically seen in larger units. Despite its small size, it offers high index speeds and is compatible with both servo and stepper motors, making it versatile for different applications.

The TMF350 was custom-designed for a manufacturer who needed a low-profile, rigid indexer that could be driven by a DC motor. This unit is designed for applications where space is limited, and it provides the strength and reliability needed for high-precision indexing in compact machines.

Key features:

  • Compact and Robust Housing: The cast housing design is both space-efficient and durable, with a large center thru-hole for running utilities and mounting additional equipment.
  • Low Profile: Its slim profile eliminates the need for bulky A-frame tooling or operator riser platforms, allowing it to fit into smaller machines.
  • Large Rotating Diameter: The larger diameter increases the mounting surface area for equipment, enhancing its versatility.
  • High Accuracy: The TMF series offers precision with less than 10 arc seconds of accuracy, whether driven by an AC motor with encoder or a servo motor.
  • Increased Load Capability: The design of the barrel cam and cam followers significantly enhances the inertial load capacity, allowing the system to handle heavier loads efficiently.

Custom Solutions

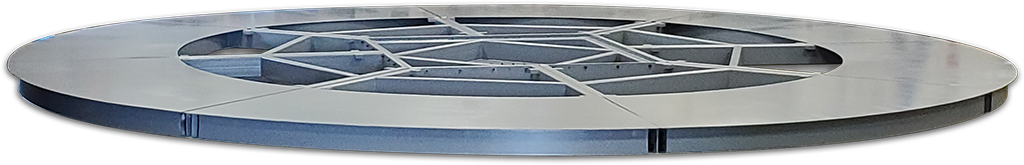

40-station-tmf

TMF 5000/40 Station Fixed Rotary Index Table

Industries

  • Consumer Goods

Features

  • 30 Foot Structural Steel Frame: Built on top of the TMF5000/40
  • 40 Station Capacity: Capable of holding 40 fixtures and parts.
  • Fixed Rotary Index Table: Chosen for cost efficiency and ease of maintenance.
  • Potential for Servo Integration: Could be equipped with a fully programmable servo or auxiliary axis robot motor for enhanced capabilities.

Functionality

The TMF 5000/40 Station Fixed Rotary Index Table is designed to support significant industrial applications by holding up to 40 fixtures and parts around its steel frame. The choice of a fixed indexer over a servo style was made to reduce costs and simplify maintenance. This setup allows for efficient operation and easy maintenance without the complexities associated with more advanced servo-driven systems.
