Welding manipulators have become essential tools in automotive, consumer goods, medical and other industries because they support the production demands of various welding applications. Manipulator welding machines can automate the handling and positioning of torches or workpieces to minimize the challenges associated with manual welding.

Explore the types of manipulators and how to select the right one for your needs below.

What Is a Welding Manipulator, and What Is It Used For?

A welding manipulator refers to any machine, whether automated or manually operated, that assists in the welding process. A welding manipulator is used to position and move a welding torch to maintain a consistent weld. The equipment is useful for projects requiring especially high-quality welds on large or complex components.

Most manipulators have one or more axes of movement to move a welding torch to follow a specific path along the workpiece, or they may rotate and tilt the workpiece so the welding torch can remain stationary.

Welders use a welding manipulator to do the following:

• Improve precision and quality: By controlling the torch’s position and angle, manipulators produce uniform welds across every component.
• Ensure safety: Welding involves exposure to high temperatures and toxic fumes. A manipulator welding machine safeguards workers by creating a buffer between the operator and these hazards. By automating the welding process, manipulators keep operators safe from intense heat and radiation exposure, which pose health risks over time.
• Improve efficiency in repetitive welds: Welding manipulators automate the repetitive movements needed for each weld for quicker and more accurate production than manual welding. The process can reduce operator fatigue and increase productivity.
• Provide access to hard-to-reach areas: Welding manipulators excel in accessing areas that would otherwise be difficult to reach manually because they can position the torch precisely where needed.
• Save costs: Automated positioning may reduce the need to constantly reposition components, promote labor efficiency and reduce production costs. Additionally, minimizing human error and the need for rework may lessen material waste.

Types of Welding Manipulators

Three popular types of welding manipulators include rotary welding positioners, rollers and column and boom welders. Each serves a distinct function, and welders can often use them together to achieve specific results. Here is a look at the types of welding manipulators.

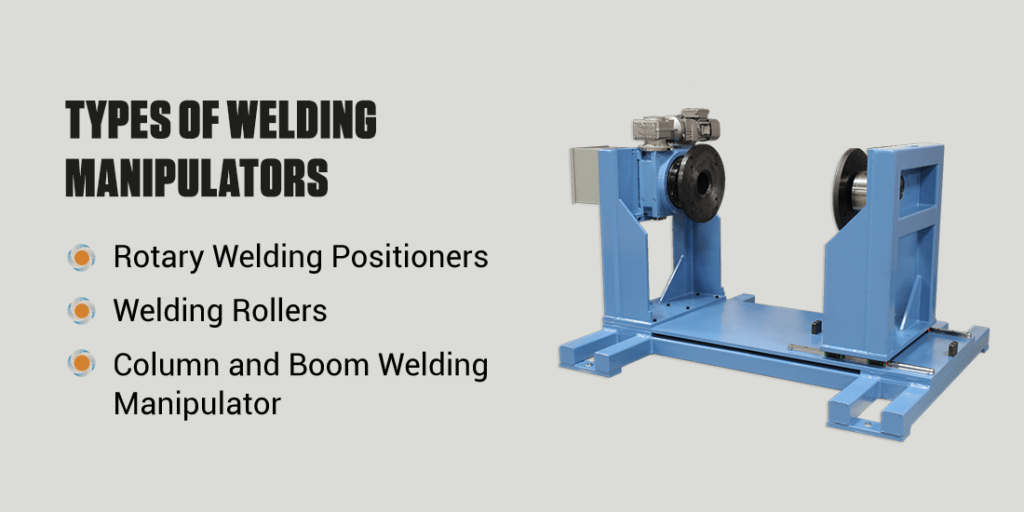

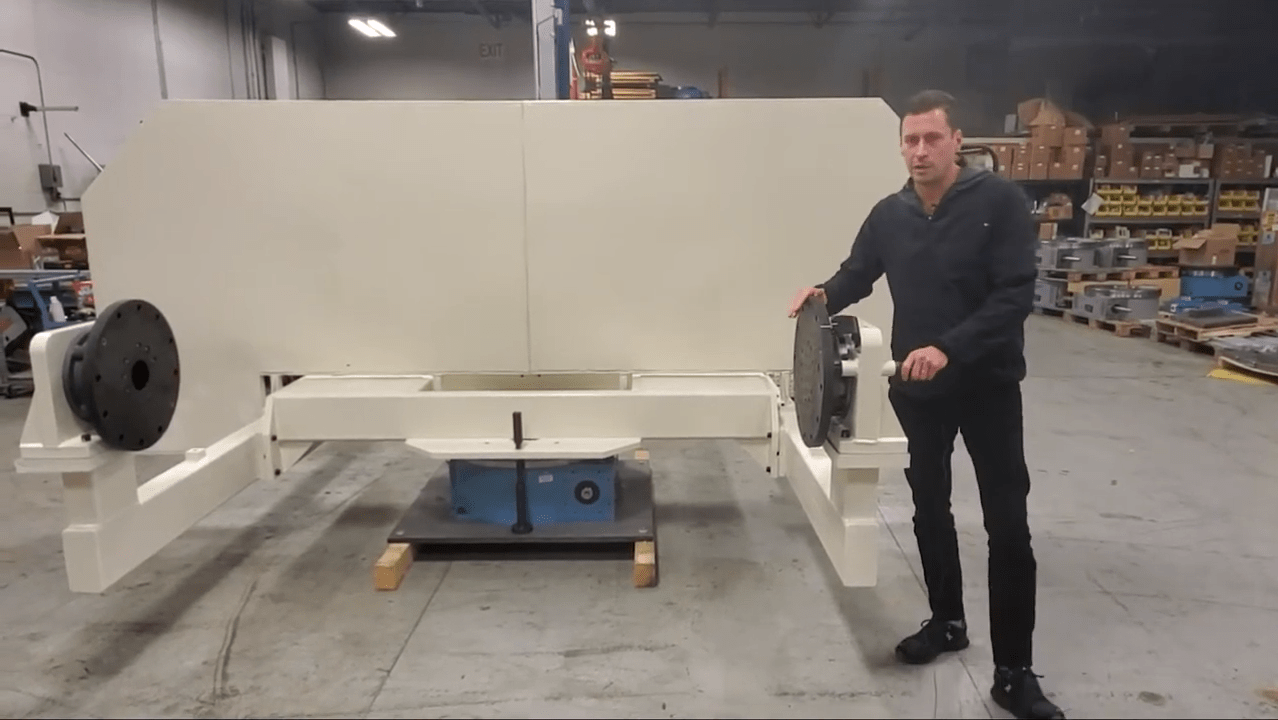

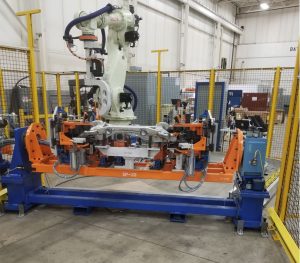

Rotary Welding Positioners

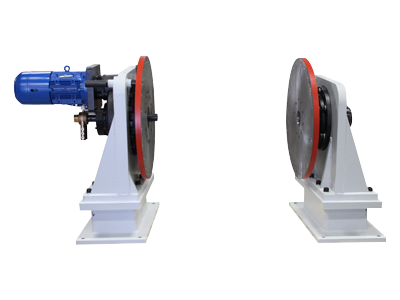

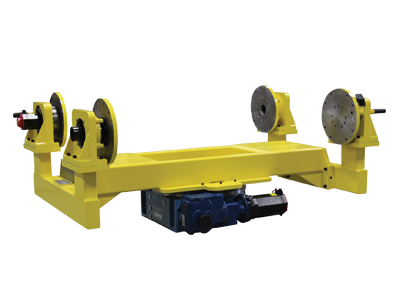

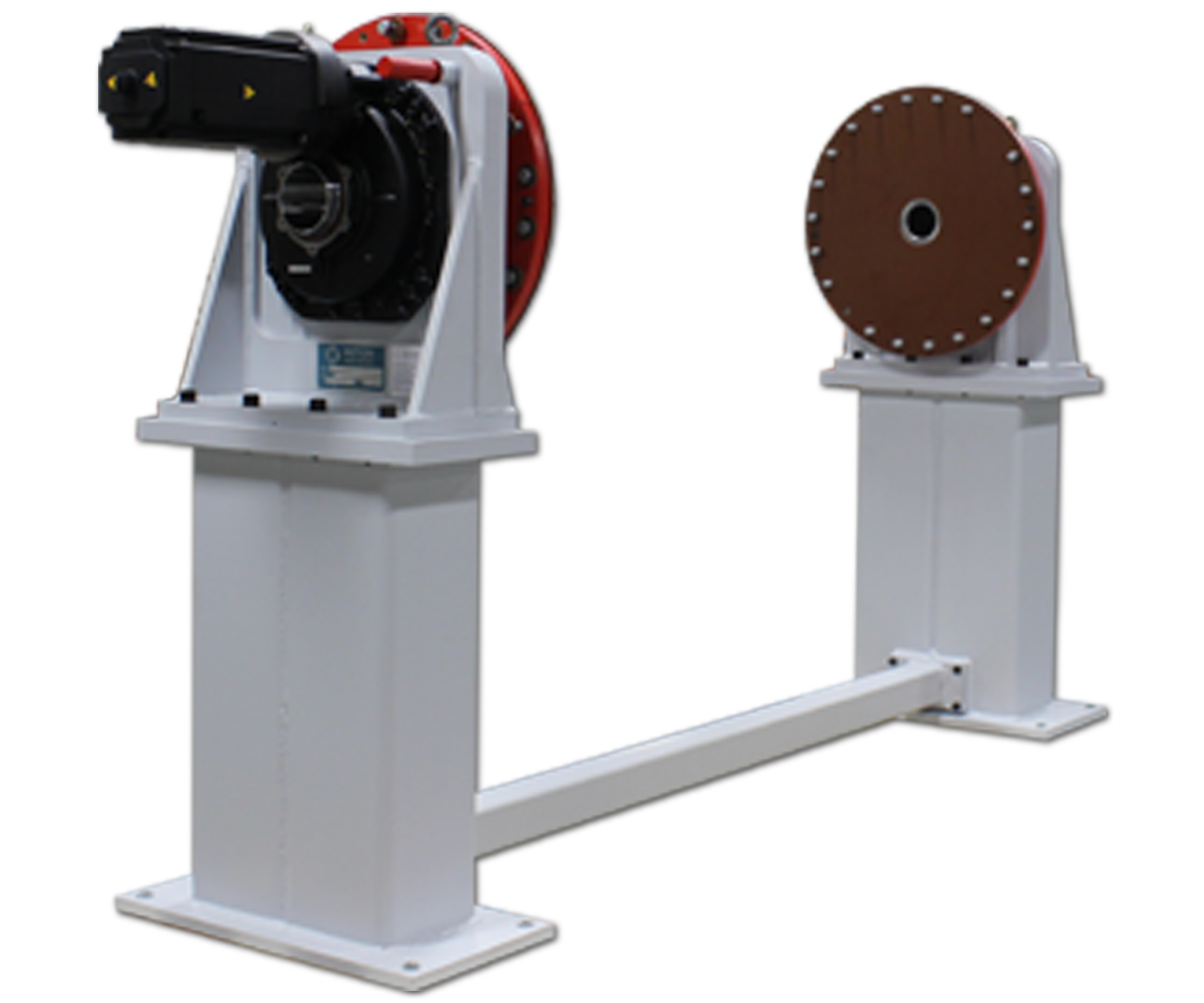

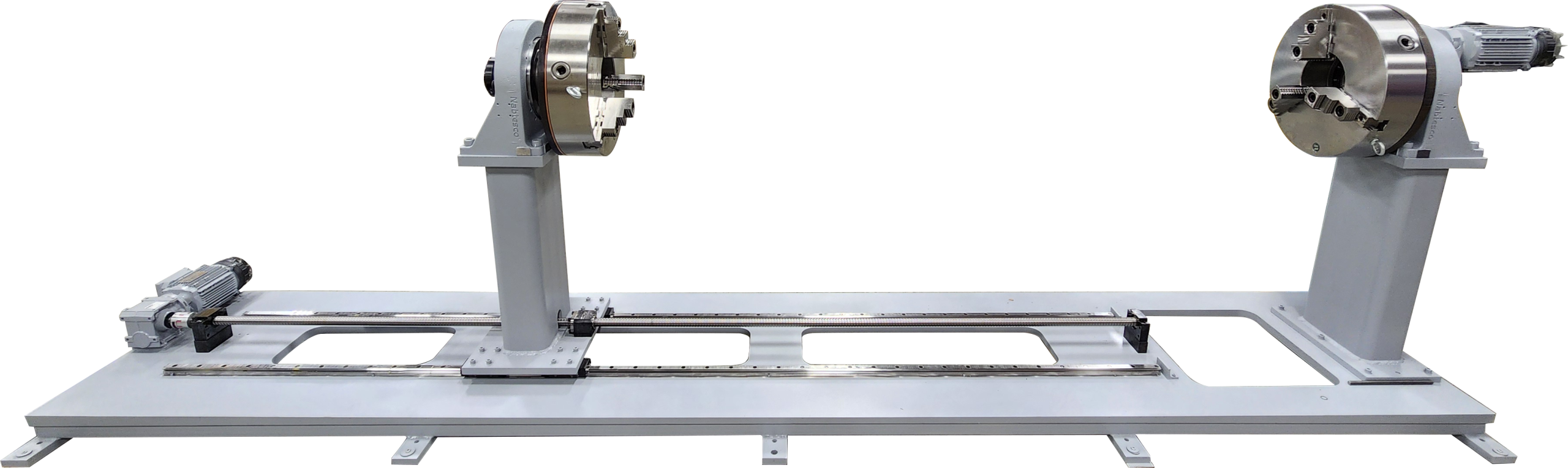

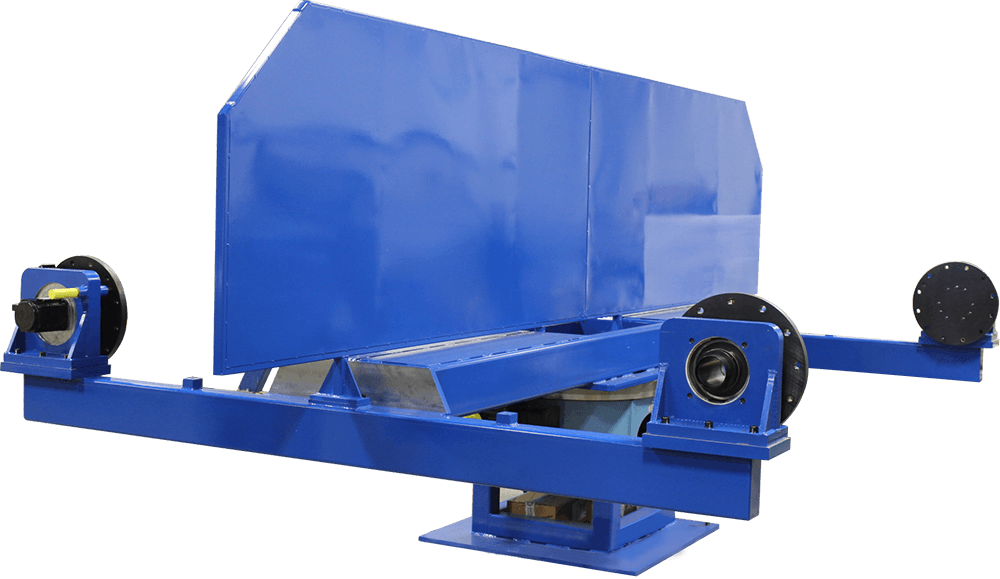

Rotary welding positioners hold a part or weldment at one end and rotate it, allowing welders or welding machines to access specific areas that need welding. These positioners come in various shapes and sizes, ranging from simple models with a single axis of rotation to advanced designs with four or five axes. Welders typically pair them with a tailstock to support the opposite end of longer or heavier parts.

Positioners with three or more axes can handle even the most complex or oddly shaped parts, making it easier for welders to access challenging areas. Some rotary positioners have tilt functionality, which allows the operator to adjust the angle of the platform and position the equipment for various welding tasks.

Welding Rollers

Rollers serve a similar function to rotary welding positioners. They operate differently. Instead of supporting a weldment or part at both ends, the weldment rests on the rollers and is rotated to give the welder access to the necessary surfaces. This design best suits cylindrical parts, such as pipes and storage tanks, which can easily roll.

Rollers are particularly useful for handling pipes with large diameters that would be challenging for a rotary welder welding positioner’s headstock or tailstock to support, making them an ideal alternative for parts that exceed the rotary welding positioners’ capacity.

Column and Boom Welding Manipulator

Column and boom manipulators serve a different purpose than rollers and rotary positioners in automated facilities. Instead of holding the weldment, they support the welding torch. These manipulators typically weld parts supported by either rotary positioners or rollers. Most have two degrees of freedom, moving vertically and horizontally in one direction, with some capable of rotating around their base. They often control the torch’s angle and distance from the welding surface.

Column and boom welding manipulator sizes range from a few feet tall and wide to several stories tall, depending on the application. Smaller column and boom units are generally used with rotary welding positioners, while larger units are necessary for welding large-diameter pipes and tanks when working with rollers.

Common Applications of Welding Manipulators

Welding manipulators are vital to the following industrial applications:

• Automotive industry: The automotive industry relies on welding manipulators to meet production volumes and ensure structural integrity. Welders use the equipment to assemble vehicle frames and repair or replace an exhaust system. With the rise of electric vehicles, engineers use manipulators to join battery cells and to ensure safety when assembling sensitive electronic components.
• Consumer goods manufacturing: Aesthetics and structural integrity are often top priorities in consumer goods. Manufacturers use manipulators to guarantee clean and precise welds when assembling appliance frames and casings or electronic housings and enclosures.
• Medical device manufacturing: Welders may use welding manipulators to fuse surgical instruments or medical equipment frames and enclosures.
• Oil and gas sector: Welding manipulators support the production of pipelines, tanks and pressure vessels. These solutions ensure infrastructures can withstand extreme environmental conditions.
• Heavy equipment and construction: Heavy equipment manufacturing, including machinery used in construction, mining and agriculture, benefits from welding manipulators because they allow precise welds in hard-to-reach or unusually shaped parts. The equipment can also lift and move paving slabs and other structural components.
• Defense and military applications: Welding manipulators are invaluable in defense manufacturing, where products must often withstand extreme conditions. Welders can use manipulators to fabricate armored vehicles and assemble weapon system components.

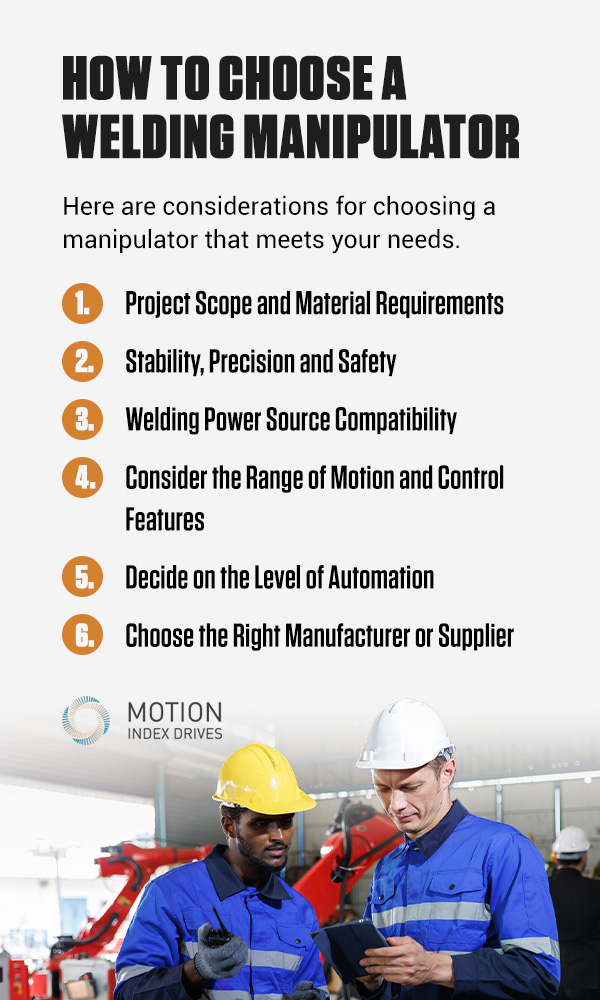

How to Choose a Welding Manipulator

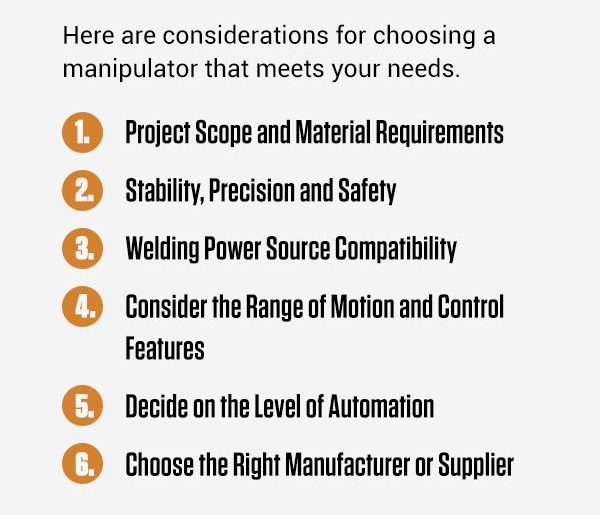

Here are considerations for choosing a manipulator that meets your needs.

1. Project Scope and Material Requirements

Define the size, weight and type of weldments you will work with. Large, heavier workpieces demand manipulators with higher load capacities and stability. Additionally, the manipulator’s versatility matters. For instance, working on cylindrical tanks may call for specific designs to hold and rotate heavy vessels while maintaining quality.

2. Stability, Precision and Safety

In applications that require a manipulator to stay fixed, the manipulator’s standstill ability is crucial. Seek manipulators that provide zero backlash and minimize vibration for precise and stable positioning during each weld. Assess the equipment’s built-in safety features, such as locking mechanisms and overload protection, for projects that demand high-stakes precision.

3. Welding Power Source Compatibility

Ensure the manipulator can integrate with your chosen welding power source. Since power requirements vary by welding process, confirm that the manipulator’s power compatibility supports your specific process without risk of power overload or disruption.

4. Consider the Range of Motion and Control Features

Choose a manipulator with the following flexibility:

• Rotation, tilt and lift options: Look for manipulators that can tilt, rotate or lift the workpiece. For example, a manipulator with a 360-degree rotation capability allows for seamless and continuous welds on cylindrical parts.
• Advanced controls and programmability: Some advanced manipulators have programmable features that allow users to set parameters such as speed and rotation angles.

5. Decide on the Level of Automation

The level of automation you need largely depends on the production volume, your operators’ skill level and the welds’ complexity. Manual manipulators require direct operator control, making them suitable for smaller or custom jobs.

Semi-automated manipulators help maintain some control over the process, while fully automated systems are ideal for high-volume production that requires consistency and speed.

6. Choose the Right Manufacturer or Supplier

Beyond providing the equipment, reputable welding manipulator manufacturers or suppliers can offer valuable expertise, customization options and ongoing support to strengthen your welding process. Here are some services to consider:

• Quality and reliability: Seek manufacturers with a record of producing durable welding manipulators.
• Customization and flexibility: Some applications may require specific design modifications. Choosing a manufacturer that offers custom solutions can be beneficial because they can tailor features to fit your needs.
• After-sales support and service: Long-term service options are vital for equipment that may wear and tear. A supplier with a responsive service team and accessible support ensures you can maintain productivity and minimize downtime.

Contact Motion Index Drives for Industrial Manipulators for Welding Applications

Motion Index Drives is a reliable partner for custom welding manipulator solutions. We specialize in automating processes with robust high-precision rotary index tables and cam indexing solutions to meet the demands of industries like automotive, medical and consumer goods. Our team collaborates closely with clients to tailor each solution to project-specific requirements to ensure optimal performance and lasting value.

Many of our products can operate for over 15 years without downtime. We are ready to support your needs with engineering expertise and a focus on safety, versatility and operational efficiency. Complete our request information form to discuss your application requirements.
