Turnkey Solution for Programmable Rotary Index Tables

No Comments - Leave a Comment

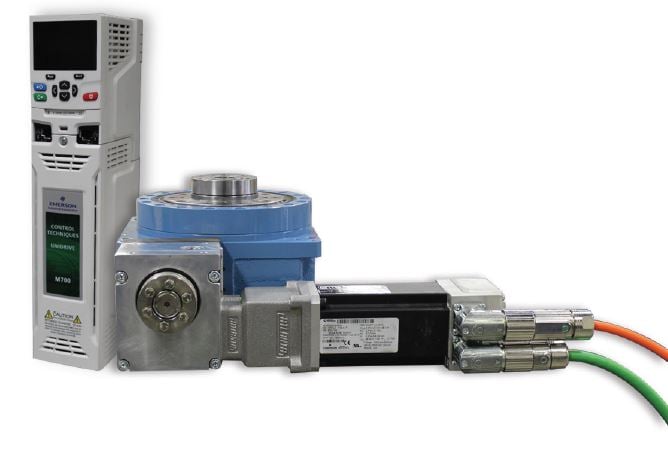

Programmable rotary index table package

These compact powerful and freely programmable rotary index table and trunnion packages are available through SunSource.

The complete package is available in 3 sizes of precision indexing units engineered to take the stress out of integrating a programmable indexing drive. The three standard models cover the mass majority of indexing applications up to 72 inches in diameter.

The indexing drive package comes complete with Emerson Digitax ST Drive and Emerson Unimotor. Combining Emerson servo technology with Motion Index Drives zero backlash cam indexers provides every customer with extremely high accuracy positioning without needing any shot pin or wedge lock devices. The drive can come preprogrammed by Sun Source engineers to give you the desired degree of rotation and speed.

Standard Features and Benefits of RT Sun Source Series Indexer

  • Extremely rigid zero backlash cam system
  • Exact ratios for worry free continuous motion applications
  • Freely programmable – capable of moving to any index angle
  • 4-point contact bearing system to handle high tilting moments
  • Case hardened cam and cam followers for longevity
  • Capable of mounting indexer in any configuration
  • Completely maintenance free – lubed for life
  • Larger index tables available

Features and Benefits Emerson Unimotor

  • Compact
  • High torque to inertia ratio
  • Large shafts for increased torsional rigidity
  • Incremental or resolver feedback
  • Rotatable low profile connectors
  • Optional with brake

Features and Benefits Emerson Digitax ST Drive

  • Quick easy set up – Pre-populated movement profiles
  • Automatic encoder count roll over
  • Auto-tune function
  • Ethernet communications standard
  • Safe Torque Off/Integrated Motion
  • Multiple Communication Protocol Options
  • Windows Interface
  • Free Software
