Industrial machinery builders depend on accurate and repeatable automation systems to manufacture complex assemblies efficiently. Motion Index Drives provides precision indexing equipment that improves productivity and quality.

Industrial Indexing Equipment

Common Applications
Best MID Solutions
Why Rotary Indexing Works
TMF8000 2
  • Industrial equipment assembly
  • Gearbox manufacturing
  • Pump and motor production
  • Machine tool assembly
  • Hydraulic equipment manufacturing
  • Automated testing systems
TMF5000 large metal thermal processing fixture equipment

Best Value

  • RT Series Rotary Index Tables

Higher Throughput

  • TMF Series Rotary Index Tables

Maximum Performance

  • Precision Link Conveyors
  • Custom Transfer Systems
rotary index tables with rotary slip rings
  • Precise positioning
  • Repeatable assembly processes
  • Increased throughput
  • Flexible automation integration
  • High load capacity

Explore Related Products

Motion Index Drives Products for Industrial Machines

Case Study

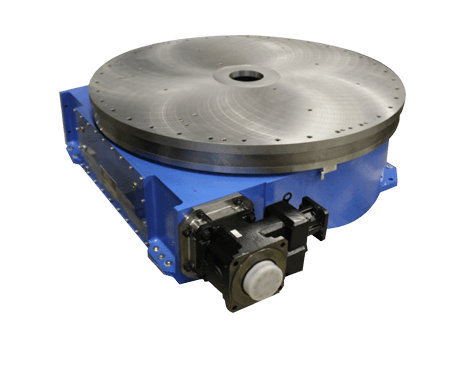

Automated Machining Requires Precision Rotary Table

industrial2-1-1

The Requirements

A special machine builder in Detroit, who has specialized in custom machining centers for automation lines since the 1940’s approached Motion Index Drives for a precision rotary solution. The machining center was developed for Catepillar to automate the machining of an axle for a heavy earth moving construction vehicle.

  • The precision rotary table had to be completely sealed, to eliminate any containments from entering the internal components of the indexer during the machining process.
  • The indexer had to be capable of working with a Fanuc machining center and have the ability to communicate with the other servo motors utilized in the machining center.
  • Stiffness of the bearing assembly on the rotary table was critical to handle the forces of machining and keeping the axle from tilting during the machining process. The machine builder wanted a bearing system that could withstand high radial, tilting and axial forces.
  • An accuracy of 12 arc seconds was requested by the machine builder to hold the tolerances of the machining specifications of the axle.
  • Lastly the customer asked if Motion Index Drives could accommodate them with a customer hole pattern on the top dial to allow them to mount their fixtures directly to the indexer.
industrial-Photoroom

Our Solution

Motion Index Drives barrel cam programmable rotary index drive TMF5000 (custom) fit the end customer’s specification. Our TMF5000 is equipped with a programmable barrel cam and was able to achieve 9 arc seconds or accuracy, exceeding the customers’ expectations. Our four‐point contact bearing in diameter of 1350 mm is capable of achieving a bearing stiffness of 1,500,000 Nm/rad for this particular application. We equipped the TMF5000 index drive with a BSF802 SEW Eurodrive reducer with a special servo adapter that we used to mount the customer provided FANUC BETA servo motor. To eliminate machining coolant fluid and metal particulates we engineered a custom flange with special sealing to mount to the standard TMF5000 rotary dial surface. This was also machined to the customers specified hole patterns to accommodate them in quick installation of their tooling fixtures.

The machine for pin manufacturing.
