Understanding Weld Positioners and Their Differences

Weld positioners are specialized rotary index tables that are vertically mounted to create a plane of rotation perpendicular to the floor. This design allows large tooling assemblies to be affixed to simple box frames and rotated efficiently, enabling multiple sets of tooling to be positioned on a single frame. Each tooling set can be arranged to serve a specific process, with the frame rotating in precise increments to bring the correct tooling into position.

Traditionally, complex manufacturing processes required multiple stations to accommodate different stages of fabrication or assembly. By integrating a weld positioner, manufacturers can consolidate multiple setups into one station, optimizing workflow and significantly reducing the required floor space. This makes weld positioners an ideal solution for operations where space constraints are a concern or where increased efficiency is needed in high-volume production environments.

Key Mechanical Differences from Standard Rotary Tables

The mechanics of a weld positioner differ fundamentally from standard rotary tables. In a conventional rotary table configuration, load capacity is determined primarily by inertial loading and bearing capacities. These systems rely on their ability to withstand dynamic forces during movement, which limits their efficiency in applications requiring substantial static loads.

In contrast, a weld positioner’s load capacity is predominantly governed by its static torque output limitations. The ability of the positioner to support and rotate heavy tooling assemblies depends on its torque capabilities rather than simply its bearing strength.

Because weld positioners are designed to handle large, sometimes asymmetrical loads, they require precise engineering to ensure system balance. A well-balanced weld positioner can rotate significant weight loads at high speeds while maintaining stability and efficiency. Since inertia in a weld positioner system is exponentially influenced by balance, improper load distribution can lead to mechanical inefficiencies, excessive wear, and potential system failure. Therefore, a properly designed and engineered weld positioner is critical for achieving optimal performance and longevity.

Applications of Weld Positioners

Weld positioners are incredibly versatile and can be integrated into numerous industrial applications. While their primary function is welding automation, they are also used for:

• Rotary Positioning: Precise movement of components for machining, painting, or finishing
• Assembly Operations: Efficient mounting and rotation of parts during complex assembly processes
• Heavy-Duty Manufacturing: Supporting large, cumbersome components during fabrication

These systems can be customized to accommodate industry-specific needs, incorporating features such as:

• Specialized Coatings: Protection against extreme environments, heat, or corrosive materials
• Custom Motion Profiles: Continuous, oscillating, or flexible operation modes for precise control
• Adjustable Index Times and Dwell Periods: Fine-tuning of rotational movement for synchronized manufacturing processes
• Reinforced Cam Followers: Increased static torque capacity to handle heavy and unbalanced loads

Industries That Benefit from Weld Positioners

Our robotic weld positioning systems are utilized across a variety of industries, including:

• Aerospace: Precision welding and assembly of aircraft components
• Heavy Construction Vehicles: Manufacturing of structural components for large-scale equipment
• Tanker Manufacturing: Fabrication of large cylindrical structures and metal tanks
• Steel Industries: Handling of heavy metal assemblies and welded structures
• Passenger Train Manufacturing: Assembly of railcar sections and metal framework
• Automotive Manufacturing: High-speed welding and assembly of vehicle chassis and structural parts

The ability to accommodate diverse manufacturing needs makes weld positioners a valuable investment for companies looking to enhance their production efficiency while maintaining high precision.

Key Benefits of Weld Positioners

The advantages of using weld positioners extend beyond space-saving and load-handling capabilities. Here are some of the primary benefits:

1. Space Efficiency and Station Consolidation

By integrating multiple tooling setups into a single frame, weld positioners eliminate the need for multiple workstations, freeing up valuable floor space. This not only improves workflow organization but also reduces the need for additional equipment, lowering capital costs.

2. Cost Savings in Manufacturing

A properly engineered weld positioner system is often more cost-effective than standard rotary tables. Since weld positioners are designed to handle heavier loads efficiently, they enable manufacturers to downsize their drive and frame requirements, reducing overall system costs.

3. Improved Load Management and System Balance

Weld positioners allow for better distribution of weight, reducing stress on mechanical components and ensuring smooth, controlled movement. This helps to prevent excessive wear and tear, prolonging the life of the equipment.

4. Enhanced Automation and Process Efficiency

Automated weld positioners can be integrated into robotic welding systems, enhancing precision and repeatability. This results in:

• Higher-quality welds with consistent penetration and strength
• Reduced cycle times by eliminating manual adjustments
• Minimized operator fatigue by automating repetitive positioning tasks

5. Easier Maintenance and Increased Equipment Lifespan

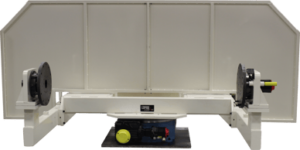

Unlike traditional rotary tables, weld positioners—particularly those equipped with trunnion drives—offer greater accessibility for maintenance. This enables operators to perform routine inspections and preventive maintenance more easily, potentially extending the service life of the indexer and reducing downtime.

6. Increased Operator Safety

By automating the positioning of large or heavy components, weld positioners help reduce the risk of workplace injuries. Operators no longer need to manually manipulate heavy workpieces, lowering the likelihood of strain-related injuries or accidents.

Conclusion: Maximizing Efficiency with Weld Positioners

Weld positioners provide an effective solution for industries requiring precise, high-capacity rotation of workpieces. Their ability to consolidate workstations, reduce manufacturing costs, optimize load handling, and enhance automation makes them a superior alternative to traditional rotary tables in many applications.

By investing in a well-engineered weld positioning system, manufacturers can achieve greater productivity, lower operational costs, and improved safety, making them a smart choice for businesses looking to streamline their production processes.
